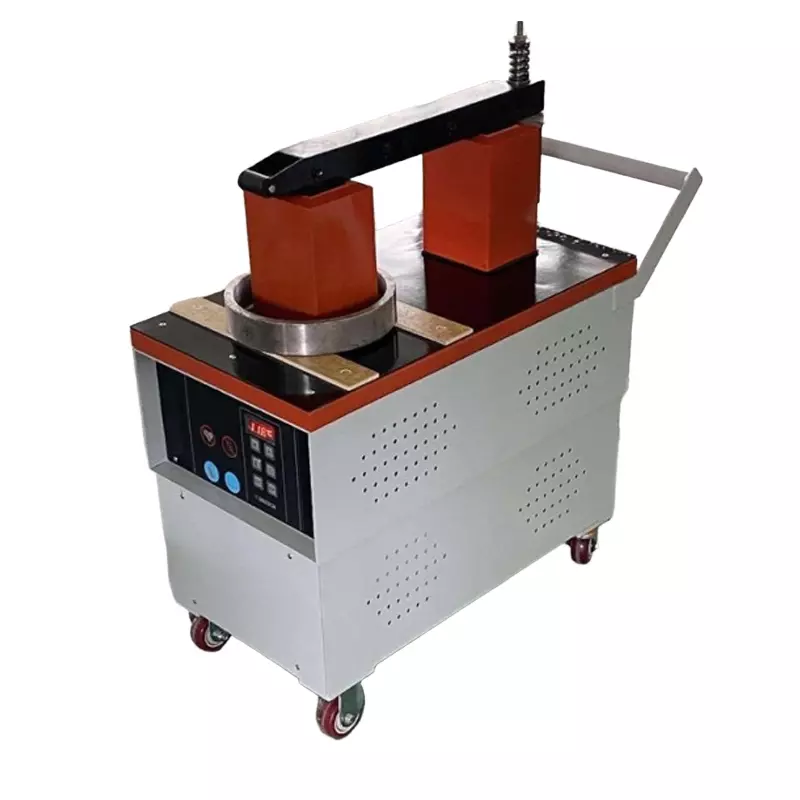

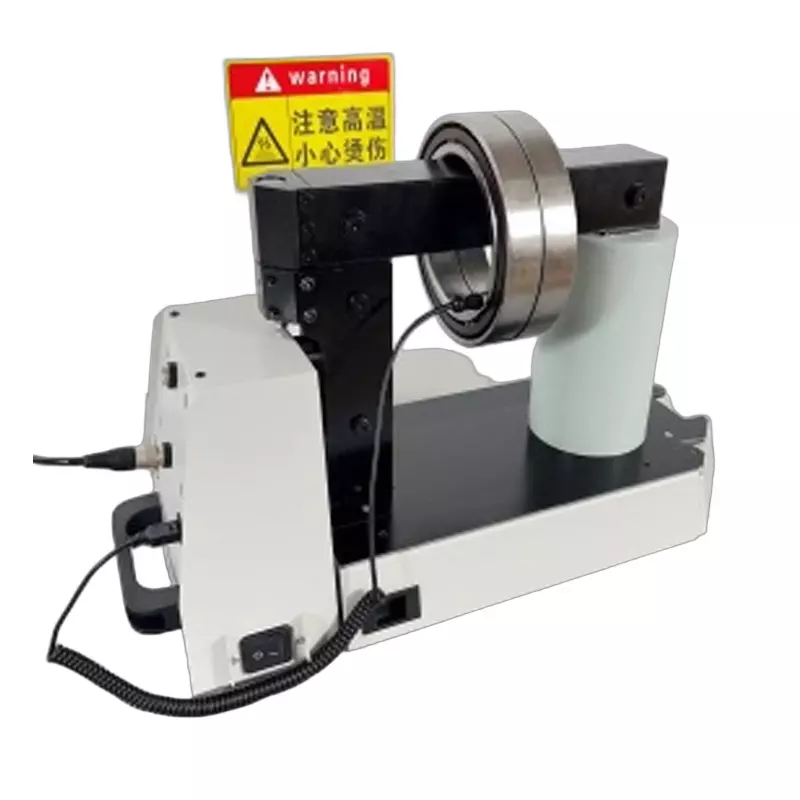

BHT Series Bearing Heaters

MOQ: 100 Pieces

Delivery time: 15 Day

BHT Series Bearing Heaters are industrial-frequency induction heating devices designed for safe and efficient operation under microprocessor control. They automatically adjust the output power to optimize performance and include protective functions against current overload and component overheating. An automatic demagnetization feature is also provided.

Previous: No More

Next: No More

Leave a Message

If you have more information you would like to know, you can leave a message to us through the form below, and our staff will contact you as soon as possible

Name *

E-mail *

Phone

Country

Message *

Products

TB Series Induction Heating Systems

CS Series Induction Heating Systems

WJ Series Induction Heating Systems

TY Series Induction Heating Systems

BHT Series Bearing Heaters

Induction Coils

Accessories & Parts

product

TB Series Electromagnetic Induction Heating Controllers

CS Series Electromagnetic Induction Heating Controllers

WJ Series Electromagnetic Induction Heating Controller

TY Series Induction Heating Systems

BHT Series Bearing Heaters

Latest News

Outdoor disassembly and assembly of electromagnetic induction heating φ2000 extrusion roller sleeves

Tongyue Electromechanical releases a new generation of intelligent electromagnetic induction heating controllers

Innovation in Industrial Heating: Tongyue Electromechanical Redefines Reliability with Next-Generation Fixed Induction Coils

Revolutionizing Industrial Maintenance: Tongyue Electromechanical Unveils Next-Gen Induction Heating Systems

Revolutionizing Bearing Maintenance: Tongyue Electromechanical Introduces Next-Generation Induction Bearing Heaters

Model	BHT220	BHT480	BHT720	BHT1020	BHT1400
Apparent power	2.5KVA	3.6KVA	10KVA	12KVA	32KVA
Voltage	220V/50Hz	220V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
The maximum weight of the heated bearing is Kg	15	50	150	600	1000
The outermost diameter of the heated bearing mm	220	480	720	1020	1400
Minimum inner diameter of the heated bearing mm	15	20	45	60	290
Maximum vertical heating height (mm)	70	120	195	380
Maximum width of horizontal heating mm	90	175	200	300	600
Overall dimensions (length * width * height)mm	240200240	460210260	475440350	14507001100	22408001600
Weight Kg	10	24	50	220	1000
Specification of heating rod (length * width * height) mm	1010150	1414250	3030370	4040600	1201201100
	2020150	2020250	4040370	6060600
	3030150	3030250	5050370	8585600
	4040150	4545250	6565370

BHT Series Bearing Heaters
