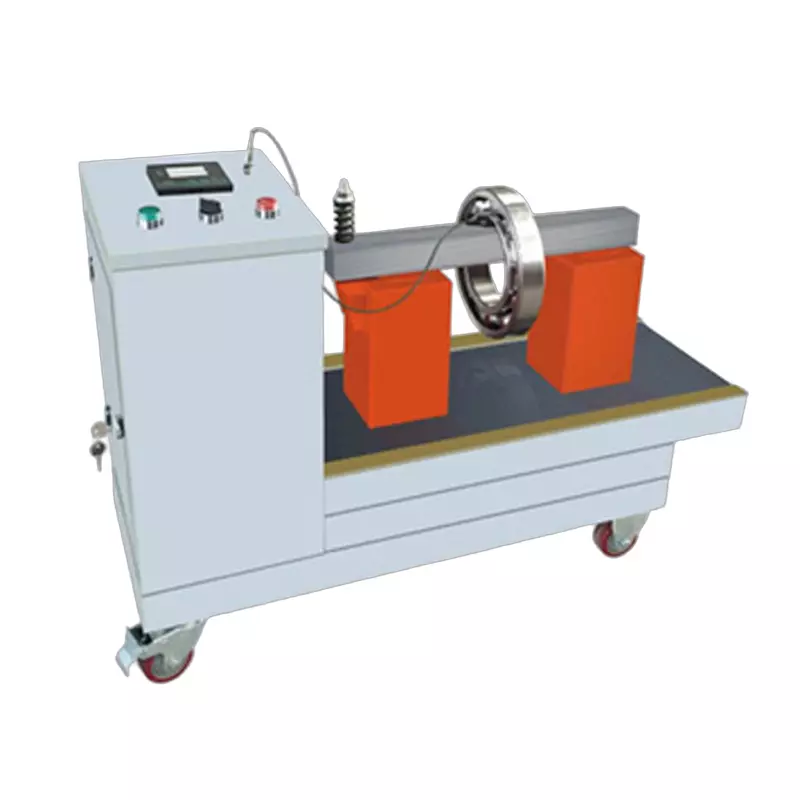

The fully enclosed three-group coil design ensures high heating efficiency.
304 stainless steel casing, less affected by magnetic fields, more sturdy and durable
The main unit has a double-layer solid structure. It is filled with epoxy resin inside and the heat dissipation is uniform. It is insulated.
|
Model number
|
BHZ-M80H
|
BHZ-M100H
|
BHZ-M120H
|
BHZ-M160H
|
BHZ-M180H
|
BHZ-M200H
|
BHZ-M250H
|
|
Style
|
Vehicle-mounted
|
Vehicle-mounted
|
Vehicle-mounted
|
Vehicle-mounted
|
Vehicle-mounted
|
Vehicle-mounted
|
Vehicle-mounted |
|
Power KW
|
8
|
10
|
12
|
16
|
18
|
20
|
25
|
|
Voltage
|
380V
|
380V
|
380V
|
380V
|
380V
|
380V
|
380V
|
|
Inner diameter range
|
30-250mm
|
30-300mm
|
30-350mm
|
50-450mm
|
80-500mm
|
80-550mm
|
100-600mm
|
|
Maximum outer diameter
|
450mm
|
500mm
|
550mm
|
650mm
|
700mm
|
750mm
|
900mm
|
|
Maximum width
|
170mm
|
210mm
|
210mm
|
230mm
|
300mm
|
300mm
|
380mm
|
|
Overall dimensions (length * width * height)
|
900*320*680
|
950*320*680
|
960*330*720
|
1050*360*770
|
1150*450*800
|
1320*500*880
|
1420*550*920
|
|
Heating rod configuration
|
20*20
30*30
40*40
50*50
|
30*30
40*40
60*60
|
30*30
40*40
60*60
|
30*30
40*40
60*60
|
40*40
60*60
|
60*60
|
70*70
|
|
Temperature control
|
0-300℃
|
0-300℃
|
0-300℃
|
0-300℃
|
0-300℃
|
0-300℃
|
0-300℃
|
|
Time control
|
0-9999s
|
0-9999s
|
0-9999s
|
0-9999s
|
0-9999s
|
0-9999s
|
0-9999s
|
|
Maximum temperature
|
300℃
|
300℃
|
300℃
|
300℃
|
300℃
|
300℃
|
300℃
|
|
Automatic demagnetization
|
Support
|
Support
|
Support
|
Support
|
Support
|
Support
|
Support
|
|
Remaining magnetic quantity
|
＜2A/cm
|
＜2A/cm
|
＜2A/cm
|
＜2A/cm
|
＜2A/cm
|
＜2A/cm
|
＜2A/cm
|
|
Temperature sensor
|
K-type
|
K-type
|
K-type
|
K-type
|
K-type
|
K-type
|
K-type
|
|
The fault code indicates
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Overload protection
|
Yes
|
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Equipment weight
|
100KG
|
120KG
|
130KG
|
160KG
|
220KG
|
260KG
|
300KG
|
